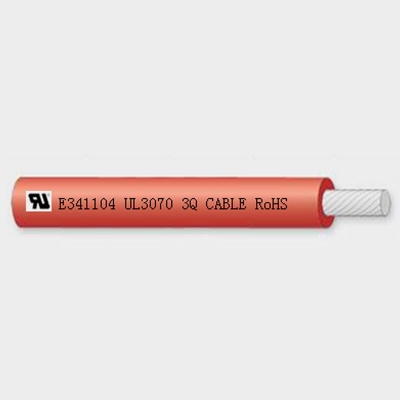

Product Description
1.額定溫度：150oC 2.額定電壓：600V AC 3.執行標準：UL758，UL1581 4.導體使用單根或絞合18AWG-12AWG鍍錫或裸銅絲 5.絕緣采用硅橡膠絕緣 6.通過UL FT2 水平燃燒 7.絕緣厚度均勻，易剝，易裁 8.環保要求：符合RoHS標準 9.內部用線 | 1.Rated temperature:150oC 2.Rated voltage:600V AC 3.According to:UL subject 758,UL1581 4.Solid or Stranded,tinned or bare copper conductor 18AWG-12AWG 5.SR insulation. 6.Passes FT2 Horizontal flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting. 8.Environmental testing pass RoHS 9.Internal wiring |
Product Specifications
| UL型號 | 導體線規(AWG) | 導體結構 Conductor | 導體外徑 | 絕緣厚度 | 電纜外徑 | 最大導體電阻（Ω/km） | 標準包裝長度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond.resistance（Ω/km ,20oC） | FT/ROLL | METER/ROLL |
| UL3070 | 18 | 16/0.254 | 1.17 | 0.76 | 2.80 | 23.2 | 2000 | 610 |
| 16 | 26/0.254 | 1.49 | 3.10 | 14.6 | 1000 | 305 | ||
| 14 | 41/0.254 | 1.87 | 3.50 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 4.00 | 5.64 | ||||
