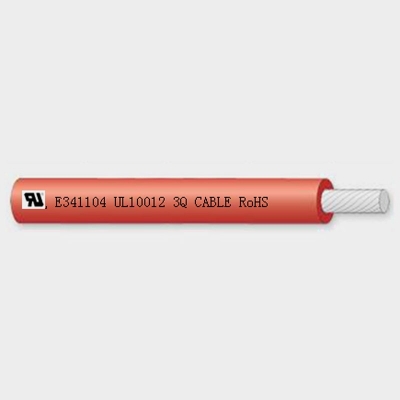

Product Description
1.額定溫度：80oC,90oC,105oC 2.額定電壓：600，1000V 3.執行標準：UL758，UL1581,CSA C22.2 4.導體使用單根或絞合30AWG-2000kcmil鍍錫或裸銅絲 5.絕緣采用聚氯乙烯材料 7.絕緣厚度均勻，易剝，易裁 6.通過UL VW-1 — CSA FT1 垂直燃燒 8.環保要求：符合RoHS標準 9.用于進一步加工成電纜, | 1. Rated temperature:80oC,90oC,105oC 2.Rated voltage:600，1000V 3.According to:UL subject 758,UL1581,CSA C22.2 4.Solid or Stranded,tinned or bare copper conductor30AWG-2000kcmil 5.PVC insulation. 6.Passes UL VW-1 & CSA FT1 Vertical flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting. 8.Environmental testing pass RoHS 9.For Further Processing into Cables |
Product Specifications
| UL型號 | 導體線規(AWG) | 導體結構 Conductor | 導體外徑 | 絕緣厚度 | 電纜外徑 | 最大導體電阻（Ω/km） | 標準包裝長度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge(AWG) | Construction(no/mm) | Conductor outer diameter(mm) | Insulation thickness (mm) | Wire O.D(mm) | Max Cond.resistance（Ω/km ,20oC） | FT/ROLL | METER/ROLL |
| UL10012 | 26 | 7/0.16 | 0.48 | 0.51 | 1.60 | 150 | 2000 | 610 |
| 24 | 11/0.16 | 0.61 | 1.70 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 1.90 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 2.10 | 36.7 | ||||
| 18 | 16/0.254 | 1.17 | 2.30 | 23.2 | ||||
| 16 | 26/0.254 | 1.49 | 2.60 | 14.6 | ||||
| 14 | 41/0.254 | 1.87 | 3.00 | 8.96 | 1000 | 305 | ||
| 12 | 65/0.254 | 2.36 | 3.50 | 5.64 | ||||
| 10 | 105/0.254 | 3.00 | 4.20 | 3.546 | ||||
| 8 | 168/0.254 | 3.80 | 0.76 | 5.80 | 2.23 | 492 | 150 | |
| 6 | 266/0.254 | 4.80 | 1.14 | 7.50 | 1.403 | 328 | 100 | |
| 4 | 412/0.254 | 6.00 | 8.70 | 0.882 | ||||
| 2 | 665/0.254 | 7.70 | 10.60 | 0.5548 | / | REEL | ||
| 1 | 825/0.254 | 8.50 | 1.52 | 12.30 | 0.4398 | |||
| 1/0 | 1045/0.254 | 9.60 | 13.60 | 0.3487 | ||||
| 2/0 | 1330/0.254 | 10.80 | 15.00 | 0.2766 | ||||
| 3/0 | 1650/0.254 | 12.20 | 16.20 | 0.2194 | ||||
| 4/0 | 2090/0.254 | 13.80 | 18.00 | 0.1722 | ||||
