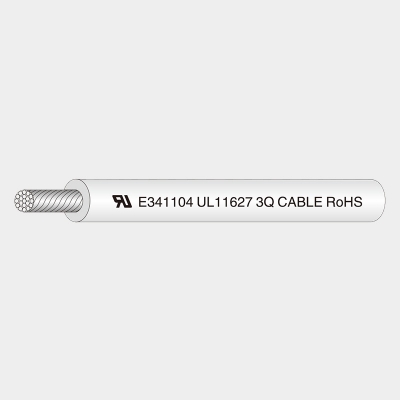

UL11627
105ºC 2000V AC 聚氯乙烯絕緣電線
產品說明
1.額定溫度：105oC 2.額定電壓：2000V AC 3.執行標準：UL758，UL1581 4.導體使用單根或絞合30AWG-2000Kcmial鍍錫或裸銅絲 5.絕緣采用聚氯乙烯絕緣 6.通過UL VW-1 — CSA FT1 垂直燃燒 7.絕緣厚度均勻，易剝，易裁 8.環保要求：符合RoHS標準 9.產品廣泛用于電器設備內部連接線 | 1. Rated temperature:105oC 2.Rated voltage:2000V AC 3.According to:UL subject 758,UL1581 4.Solid or Stranded,tinned or bare copper conductor 30AWG-2000Kcmil 5.PVC insulation 6.Passes UL VW-1 & CSA FT1 Vertical flame test 7.Uniform insulation thickness of wire to ensure easy stripping and cutting 8.Environmental testing pass RoHS 9.Internal Wiring of Appliances |
產品規格
| UL型號 | 導體線規 (AWG) | 導體結構 Conductor | 導體外徑 (mm) | 絕緣厚度 (mm) | 電纜外徑 (mm) | 最大導體電阻 (Ω/km) | 標準長度 | |
| Standard pup-up | ||||||||
| UL TYPE | Gauge (AWG) | Construction (no/mm) | Conductorouter diameter | Tnsulation thickness | Wire O.D | Max Cond.resistance (Ω/km ,20oC) | FT/ROLL | METER/ROLL |
| UL11627 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | 2000 | 610 |
| 24 | 11/0.16 | 0.61 | 2.20 | 94.2 | ||||
| 22 | 17/0.16 | 0.76 | 2.40 | 59.4 | ||||
| 20 | 21/0.178 | 0.94 | 2.60 | 36.7 | ||||
| 18 | 63/0.127 | 1.17 | 2.80 | 23.2 | ||||
| 16 | 105/0.127 | 1.49 | 3.10 | 14.6 | 1000 | 305 | ||
| 14 | 168/0.127 | 1.87 | 3.50 | 8.96 | ||||
| 12 | 259/0.127 | 2.36 | 4.00 | 5.64 | ||||
| 10 | 413/0.127 | 3.00 | 4.70 | 3.546 | ||||
| 8 | 665/0.127 | 3.80 | 1.14 | 6.50 | 2.23 | 492 | 150 | |
| 6 | 1050/0.127 | 4.80 | 1.52 | 8.40 | 1.403 | 328 | 100 | |
| 4 | 1666/0.127 | 6.00 | 9.50 | 0.882 | ||||
| 2 | 2646/0.127 | 7.70 | 11.50 | 0.5548 | / | REEL | ||
| 1 | 3283/0.127 | 8.50 | 2.03 | 13.90 | 0.4398 | |||
| 1/0 | 4137/0.127 | 9.60 | 14.80 | 0.3487 | ||||
| 2/0 | 5225/0.127 | 10.80 | 16.00 | 0.2766 | ||||
| 3/0 | 6574/0.127 | 12.20 | 17.50 | 0.2194 | ||||
| 4/0 | 8284/0.127 | 13.80 | 19.50 | 0.1722 | ||||
