產品說明
1. 額定溫度：70oC 2.額定電壓：300/500V 3.執行標準：GB/T 5023.5 4.導體使用單根或絞合0.75-2.5MM2裸銅絲 5.絕緣采用聚氯乙烯,護套采用聚氯乙烯 6.通過18380.12試驗 7.產品符合歐盟RoHS要求 8.適用于小型室內器具，家電產品電力供應線 | 1. Rated temperature:70oC 2.Rated voltage:：300/500V 3.According to:GB/T 5023.5 4.Solid or Stranded, bare copper conductor 0.75-2.5MM2 5.PVC insulation.PVC jaket 6.Passes 18380.12 Test 7.Environmental testing pass RoHS 8.Suitable for indoor electrical instruments power sipply wire |
產品規格
| TYPE | 導體 Conductor | 絕緣厚度 Insulation Thickness | 外套厚度 Jacket Thickness | 完成外徑 Overall Diameter | 最大導體電阻 MAX.COND. RESISTANCE (Ω/Km,20℃) | 標準長度 STANDARD PUT-UP (M/ROLL) | ||
| 型號 | 規格(mm2) Size | 線數/線徑 NO./MM | ||||||
| MIN. | MAX. | |||||||

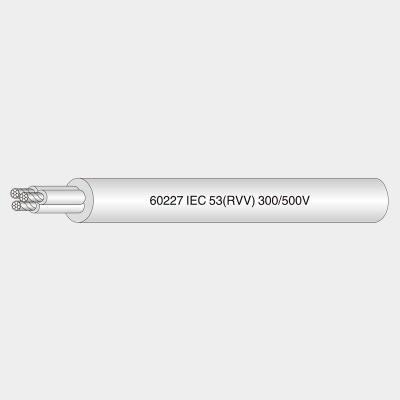

| 60227 IEC 53(RVV) | 0.75*2C | 24/0.20 | 0.6 | 0.8 | 5.7 | 7.2 | 26.0 | / |
| 3.7*6.0 | 4.5*7.2 | |||||||
| 1.0*2C | 32/0.20 | 4.9 | 7.5 | 19.5 | ||||
| 3.9*6.2 | 4.7*7.5 | |||||||
| 1.5*2C | 30/0.25 | 0.7 | 0.8 | 6.8 | 8.6 | 13.3 | ||
| 2.5*2C | 49/0.25 | 0.8 | 1 | 8.4 | 10.6 | 7.98 | ||
| 0.75*3C | 24/0.20 | 0.6 | 0.8 | 6.0 | 7.6 | 26.0 | ||
| 1.0*3C | 32/0.20 | 6.3 | 8.0 | 19.5 | ||||
| 1.5*3C | 30/0.25 | 0.7 | 0.9 | 7.4 | 9.4 | 13.3 | ||
| 2.5*3C | 49/0.25 | 0.8 | 1.1 | 9.2 | 11.4 | 7.98 | ||
| 0.75*4C | 24/0.20 | 0.6 | 0.8 | 6.6 | 8.3 | 26.0 | ||
| 1.0*4C | 32/0.20 | 0.9 | 7.1 | 9.0 | 19.5 | |||
| 1.5*4C | 30/0.25 | 0.7 | 1 | 8.4 | 10.5 | 13.3 | ||
| 2.5*4C | 49/0.25 | 0.8 | 1.1 | 10.1 | 12.5 | 7.98 | ||
| 0.75*5C | 24/0.20 | 0.6 | 0.9 | 8.4 | 9.3 | 26.0 | ||
| 1.0*5C | 32/0.20 | 7.8 | 9.8 | 19.5 | ||||
| 1.5*5C | 30/0.25 | 0.7 | 1.1 | 9.3 | 11.6 | 13.3 | ||
| 2.5*5C | 49/0.25 | 0.8 | 1.2 | 11.2 | 13.9 | 7.98 | ||
