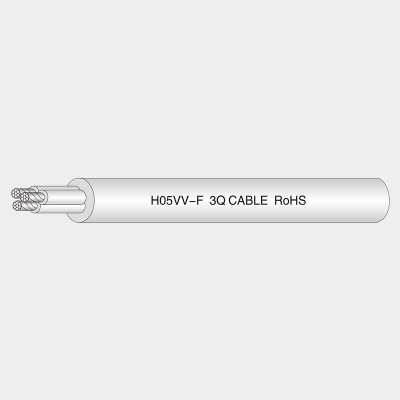

產品說明
1. 額定溫度：70oC 2.額定電壓：300/500V 3.執行標準：HD 21.5 S2 4.導體使用單根或絞合0.75-4MM2裸銅絲 5. 絕緣采用聚氯乙烯,護套采用聚氯乙烯 6.通過50265-2-1燃燒 7.產品符合歐盟RoHS要求 8.產品廣泛用于一般電子，電器設備內部連接線 | 1. Rated temperature:70oC 2.Rated voltage:：300/500V 3.According to:HD 21.5 S2 4.Solid or Stranded, bare copper conductor 0.75-4MM2 5.PVC insulation.PVC jaket 6.Passes 50265-2-1 Vertical flame test 7.Environmental testing pass RoHS 8.Use for general electric equipmen internal wiring |
產品規格
| TYPE | 導體 Conductor | 絕緣厚度 Insulation Thickness | 外被厚度 Jacket Thickness | 完成外徑 Overall Diameter | 最大導體電阻 MAX.COND. RESISTANCE (Ω/Km,20℃) | 標準長度 STANDARD PUT-UP (M/ROLL) | |
| 型號 | 規格(mm2) Size | 線數/線徑 NO./MM | |||||
| H05V V-F | 0.75*2C | 24/0.20 | 0.6 | 0.8 | 6.8 | 26.00 | 150 |
| 0.75*3G | 24/0.20 | 7.2 | 26.00 | ||||
| 0.75*4G | 24/0.20 | 7.9 | 26.00 | ||||
| 1.0*2C | 32/0.20 | 7.2 | 19.50 | ||||
| 1.0*3G | 32/0.20 | 7.6 | 19.50 | ||||
| 1.0*4G | 32/0.20 | 0.9 | 8.6 | 19.50 | |||
| 1.5*2C | 30/0.25 | 0.7 | 0.8 | 8.2 | 13.30 | ||
| 1.5*3G | 30/0.25 | 0.9 | 8.9 | 13.30 | |||
| 1.5*4G | 30/0.25 | 1.0 | 9.9 | 13.30 | 100 | ||
| 2.5*2C | 30/0.25 | 0.8 | 9.8 | 7.98 | |||
| 2.5*3G | 30/0.25 | 1.1 | 10.6 | 7.98 | 150 | ||
| 2.5*4G | 30/0.25 | 11.6 | 7.98 | ||||
| 4.0*2C | 56/0.3 | 11.2 | 4.95 | ||||
| 4.0*3G | 56/0.3 | 1.2 | 12 | 4.95 | 100 | ||
| 4.0*4G | 56/0.3 | 13.5 | 4.95 | ||||
